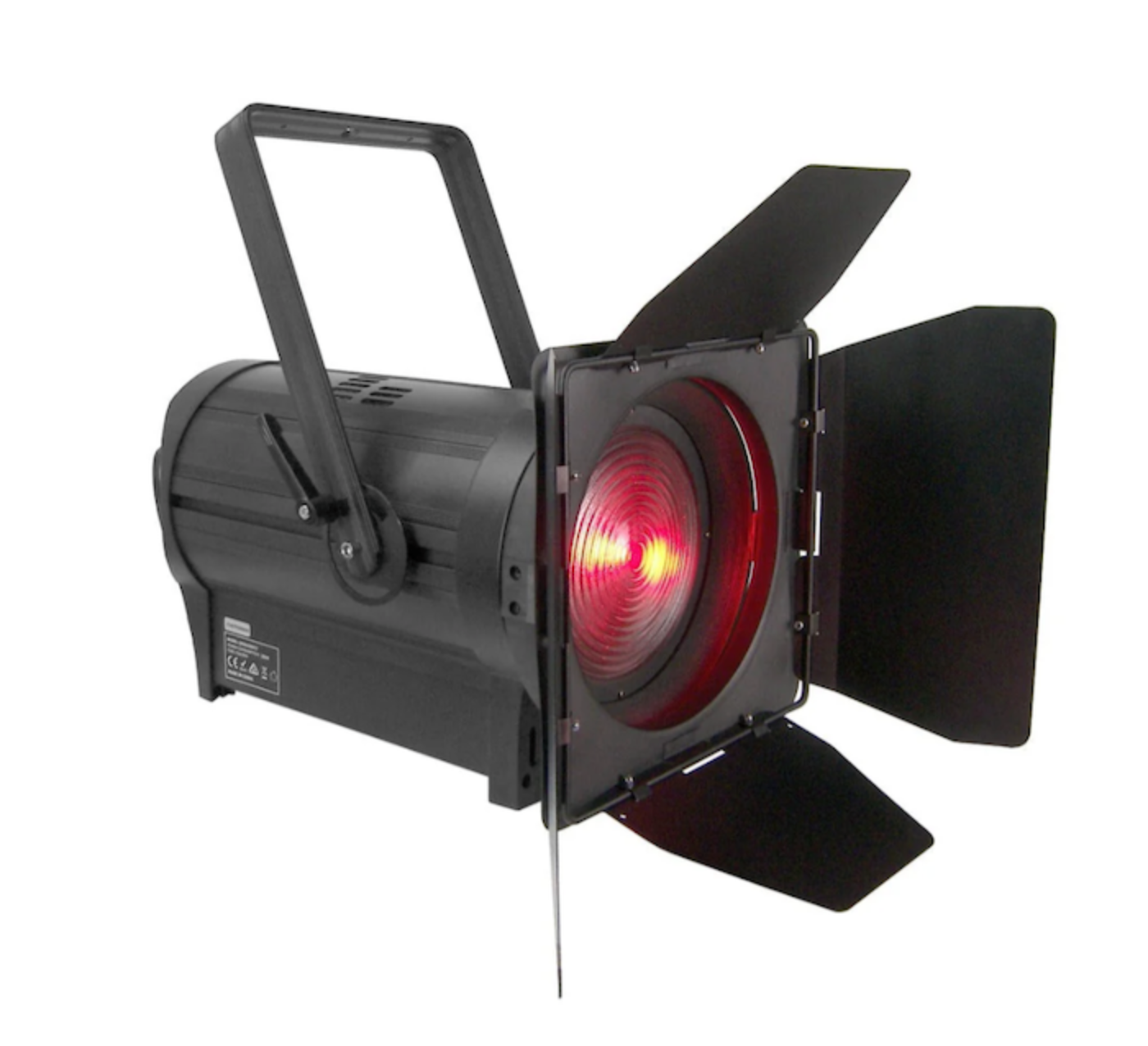

OPERA300FCF – Fresnel LED Engine (300W RGBALC)

Description

Key Features

• 300W RGBALC LED engine (RGB + Amber + Lime + Cyan)
• High color accuracy (CRI up to 97)
• HSIC color control for easy color selection
• Designed for stage, theatre, and event lighting

Optical & Light Output

• Beam angle: 14° – 55° (motorised zoom)
• Colour temperature: 2700K – 10,000K adjustable
• Lens: 175mm Fresnel lens + glass optics
• LED lifespan: ~50,000 hours
• PWM: 1,000 – 8,000 Hz (flicker control)

Effects & Control

• Dimming: 0–100% (16-bit smooth dimming)
• Control modes: DMX, RDM, Manual
• DMX channels: Multiple modes (1CH up to 18CH)
• Connections: 3-pin & 5-pin XLR in/out
• Interface: 4-button OLED display

Power

• Power supply: 100–240V AC, 50/60Hz
• Power consumption: 300W
• Connector: True1 in/out

Build & Physical

• Housing: Die-cast aluminum (matte black)
• Tilt: ±90°
• Cooling: Silent fan + automatic temperature control
• IP rating: IP23 (indoor use)
• Weight: 10 kg
• Size: 538 × 270 × 395 mm

What it’s good for

• Theatre productions
• Stage lighting (spot + wash flexibility)
• Events needing accurate color rendering and smooth dimming

Simple takeaway

This fixture is a professional-grade full-color Fresnel with:

• strong output (300W),
• excellent color quality (CRI 97),
• and flexible zoom (14–55°), making it suitable for both tight spotlighting and wide washes.
